7. UML annotations - line_diversion

The python module line_diversion extracts marked annotation lines from text files. The extraction result is generally a PlantUML diagram. Future extensions to extract other material (e.g. dot(1) graphs) are possible and probable.

While writing source code, the PlantUML annotations can be easily added near the source code lines. (See section Emacs support). The idea of this concept is to minimize the distance between source code and documentation (see section 8, Relevance of Documentation)[1].

7.1. Emacs support

A set of Emacs commands facilitates code annotation, reformatting of annotations and diagram preview. The commands are all prefixed with umlx- and bound with the prefix command C-# u. See C-# u C-h for key bindings:

C-# u a               umlx-mark-activity
C-# u b               umlx-re-mark-buffer
C-# u c               umlx-convert-old
C-# u g               umlx-grep-find
C-# u k               umlx-unmark
C-# u m               umlx-mark
C-# u o               umlx-occur
C-# u t               umlx-symbol-tag-delimiter
C-# u u               umlx-re-mark
C-# u x               umlx-extract

In addtion to the C-# u <char> binding, some commands are also directly bound to C-# <char>:

C-# C-a               umlx-mark-activity
C-# C-b               umlx-re-mark-buffer
C-# C-k               umlx-unmark
C-# RET               umlx-mark
C-# C-t               umlx-symbol-tag-delimiter
C-# C-u               umlx-re-mark

Note

If C-# does not work (e.g. in a terminal), the prefix command C-c # can be used instead.

7.2. Annotation tags and markers

An annotation marker consists of

  • an annotation tag, which consists of
    • a comment start sequence,
    • followed directly (without whitespace) by a tag symbol, which consists of
      • a line_diversion type
      • and a diagram number,
  • optional type parameters,
  • optional text
  • and an optional comment end sequence.

ANNOTATION-MARKER:

<ANNOTATION-TAG> [<SPACE> TYPE-PARAMETERS ..] [<SPACE> <TAIL-TEXT>] [[<SPACE>] <COMMENT-END>]

ANNOTATION-TAG:

<COMMENT-START> <ANNOTATION-TAG-SYMBOL>

ANNOTATION-TAG-SYMBOL:

<LINE_DIVERSION-TYPE> <DIAGRAM-NUMBER>

E.g.:

#a55
a #a55 :;
b #a55 :; #red
#a55 ' (yes)

An annotated line is defined as:

[[<SPACE>] <COMMENT-START> <SPACE> <TEXT>] <ANNOTATION-MARKER>
| [<SPACE>] <KEYWORD> <ANNOTATION-MARKER>
| <TEXT> <ANNOTATION-MARKER> <SPACE> :[;]

7.2.1. Comment start regular expression

The regular expression for matching a comment start is defined in module line_diversion:

COMMENT_TYPE_RX='(?://+|/\\*+|;+|@:u?[bl]?comm_?@|--|<!--|#+|@[bl]?comm_?@|[.][.])'

7.2.2. Line diversion types

The line diversion types recognized are also defined in module line_diversion:

Marker
Diagram

#c[0-9]+
class diagram

#o[0-9]+
object diagram

#p[0-9]+
component diagram

#d[0-9]+
deployment diagram

#u[0-9]+
use case diagram

#a[0-9]+
activity diagram

#s[0-9]+
state machine diagram

#m[0-9]+
sequence diagram

#t[0-9]+
timing diagram

Please refer to line_diversion.py --help for authoritative information.

7.3. Practical annotation

Most, but not all annotations are comments. line_diversion also recognizes some annotated code lines like class, if, fi, … Arbitrary code lines can be marked as activity.

The first thing to do is to define an annotation tag symbol (in the example it is for an activity diagram). For activity diagrams, use a0, a1, a2, … However, the diagram numbers are strictly informational and can be arbitrary. The numbers are not interpreted as integers, i.e. a0, and a00 are different annotation tag symbols.

The tagging commands C-# m, C-# a, etc. use the last specified ANNOTATION-TAG-SYMBOL. They will ask for the ANNOTATION-TAG-SYMBOL to be used, when invoked with a prefix argument, e.g. C-u C-# m.

Note that line_diversion.py displays diagrams in the order they are first encountered in the text, not sorted by diagram numbers.

Annotation lines can be distributed anywhere throughout the source text. The annotation text is the same as regular PlantUML commands, with a few exceptions:

  • @startuml and @enduml are implicitely added by line_diversion.py and must not be explicitely defined,

  • the prefix and postfix of actions in activity diagrams (e.g. :activity ;) can be written after the PlantUML marker.

    Here is an unannotated Python example:

    # display `hello world`
    printf ('hello world')


    So instead of adding :, adding ; and marking the annotation with C-# m:

    # :display `hello world`;                                         #a0
    printf ('hello world')


    the annotation can be marked with C-# a:

    # display `hello world`                                           #a0 :;
    printf ('hello world')


    For a quick and dirty session, code statements can be marked directly as activities:

    printf ('hello world')                                            #a0 :;


    However, that is not the correct way to document anything, since it is sufficient to read the source code in such a case. There is simply no need to generate a documentation which repeats the source code word for word. The exception is for a quick overview of unknown code, where the annotations are just temporary.

PlantUML elements other than actions in an activity diagram are not enclosed in special delimiters : abnd ;:

# start                                                           #a20
a = 5                                                             #a20 :;
b = a                                                             #a20 :;
if (a==b):                                                        #a20 (yes)
   a = 12                                                         #a20 :;
else:                                                             #a20
   b = 15                                                         #a20 :;
# show values of **a** and **b**                                  #a20 :;
print(a)
print(b)
# endif                                                           #a20
# stop                                                            #a20

The extraction command:

line_diversion.py --match '^a20$' README-uml-annotations-line-diversion.txt

results in:

@startuml
skinparam padding 1
start
:a = 5;
:b = a;
if (a==b) then (yes)
   :a = 12;
else
   :b = 15;
:show values of **a** and **b**;
endif
stop
@enduml

This output can be rendered and previewed in place with C-c u u v, which is bound to the command x-plantuml-preview-current-block.

The command umlx-extract, which is bound to C-# u x, combines extraction, rendering and previewing. Without a prefix argument, the diagram for the active default marker in the current file is displayed.

With a prefix of 0, the diagram marker can be spedified.

With a negative prefix argument, the diagrams are only extracted. No preview is generated.

With a positiv prefix argument > 0 (and < 16), the diagram with the corresponding sequence number is rendered and displayed. As mentioned earlier, the extraction sequence number \((1, 2, 3, ..)\) of diagrams is unrelated to the DIAGRAM-NUMBER of the ANNOTATION-TAG-SYMBOL.

The last example in the text file README-uml-annotations-line-diversion.txt is extractet and rendered with C-u 0 C-# u x a20 RET as:

@startuml
skinparam padding 1
start
:a = 5;
:b = a;
if (a==b) then (yes)
   :a = 12;
else
   :b = 15;
:show values of **a** and **b**;
endif
stop
@enduml

A prefix number < 0 (e.g., C-- C-# u x and C-0 C-# u x) shows the extracted PlantUML diagram definition instead of a preview. It is then very simple to walk through the output and preview diagrams with C-c u u v, which is bound to the command x-plantuml-preview-current-block. This is also convenient when debugging errors.

7.4. Activity Diagrams (extracted)

Activity diagrams for extracting UML diagrams from annotated source code:

7.4.1. Extract UML diagrams

@startuml /' a2 '/
skinparam padding 1
partition "Extract UML Diagrams"  {
start
floating note right
usage:  line_diversion.py [OPTIONS] [file ..]

-m, --match RX        only extract diagrams matching RX
-b, --file-base=BASE  Write output to files: //BASE// + //ID// + ".puml".
--show-bases          show base classes for class diagrams (default)
--hide-bases          hide base classes for class diagrams
--ignore-bases CLASS  ignore base class for class diagrams
-r, --replace  REP    register replacement REP. REP is a symbol and
a replacement separated by whitespace.
--verbatim            do not perform standard replacements

| **Marker** | **Diagram**           |
| #c[0-9]+   | class diagram         |
| #o[0-9]+   | object diagram        |
| #p[0-9]+   | component diagram     |
| #d[0-9]+   | deployment diagram    |
| #u[0-9]+   | use case diagram      |
| #a[0-9]+   | activity diagram      |
| #s[0-9]+   | state machine diagram |
| #m[0-9]+   | sequence diagram      |
| #t[0-9]+   | timing diagram        |
end note
    :read from standard input,
    if no arguments are given;
        :get file contents;
        if (result.error > ERR_NONE) then (yes)
        else
        while (for each line) is (do)
            :* convert :rem: docstring comment
              to regular comment
            * remove closing comment
              at end of line;
            :perform registered replacements;
            :perform standard replacements;
            while (for each registered line parser) is (do)
                :get match object and diagram ID
                from LineParser.match();
                note right
                the first matching LineParser is used:
                * PREFIX_LP
                * SUFFIX_LP
                * COND_LP
                * ACT_LP
                * ATTRIB_LP
                * PYJSMO_ATTRIB_LP
                * PRINTE_SFORMAT_LP
                end note
                if (match found?) then (yes)
                    if (ID satisfies //--match//) then (yes)
                    #lightgreen:Process matching line|
                    endif
                    break
                else (no)
                endif
            endwhile
        endwhile
        endif
        :finish diagrams;
        if (opt_file_base) then (yes)
            :write diagrams to\nseparate files;
        else (no)
            :print diagrams on\nstandard output;
        endif
    stop
}
@enduml

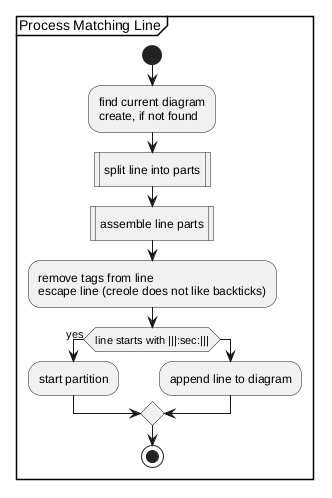

7.4.2. Process Matching Line

@startuml /' a3 '/
skinparam padding 1
partition "Process Matching Line"  {
                    start
                        :find current diagram
                        create, if not found;
                    :split line into parts|
                    :assemble line parts|
                    :remove tags from line
                    escape line (creole does not like backticks);
                    if (line starts with ||<U+007C>:sec:|||) then (yes)
                        :start partition;
                    else
                        :append line to diagram;
                    endif
                    stop
}
@enduml

@startuml /' a4 '/
skinparam padding 1
partition "Split Line Into Parts"  {
        start
        :* split line into parts
        * identify condition parts
          - remove trailing colon, semicolon
          - remove paired parentheses;
        :* call //process_parts// method of //Diagram//|
        stop
}
@enduml

@startuml /' a5 '/
skinparam padding 1
partition "Assemble Line Parts"  {
        start
        :* assemble condition
        * assemble all parts of line;
        stop
}
@enduml

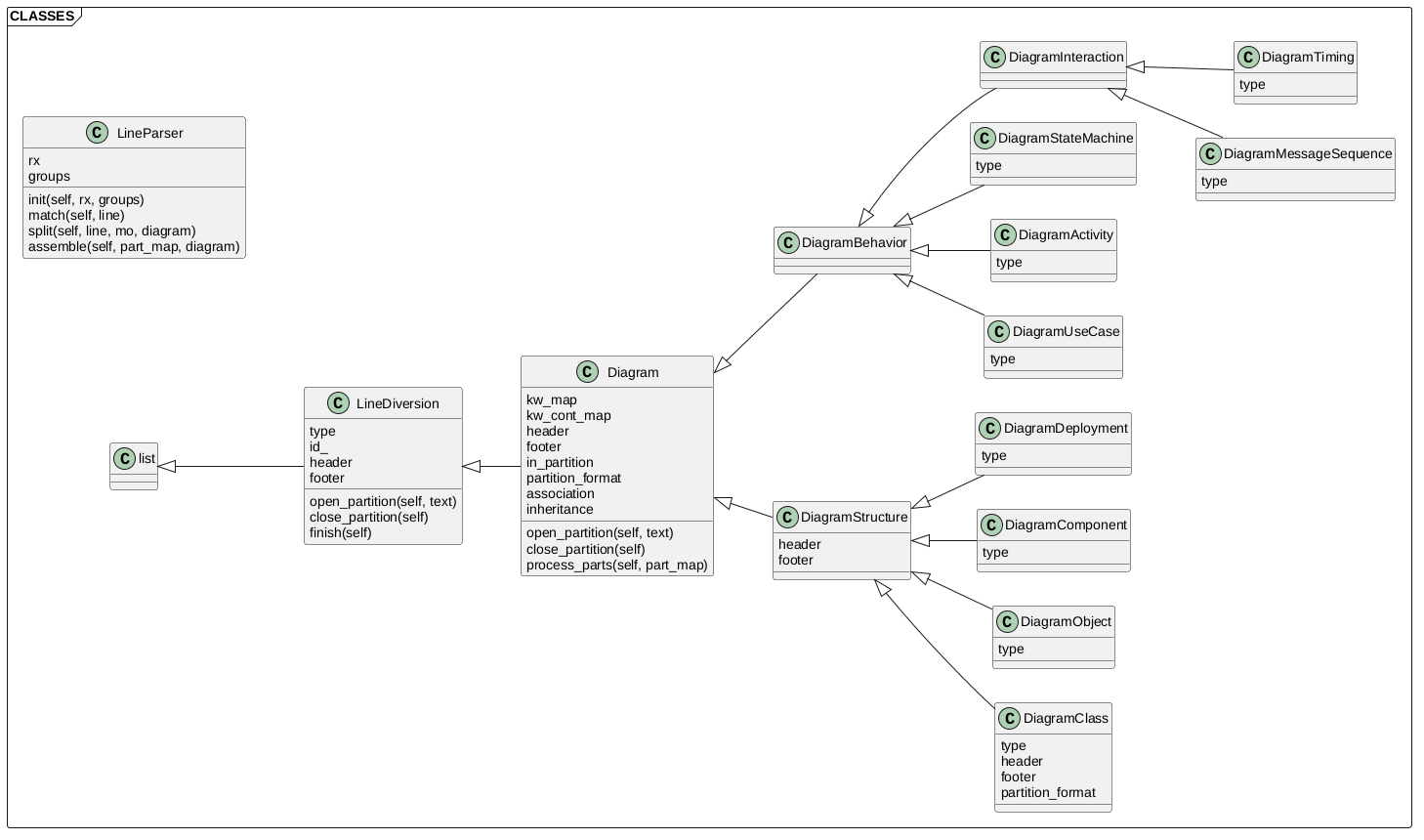

7.5. Class Diagram (extracted)

Class diagram:

@startuml /' c0 '/
skinparam padding 1
left to right direction
frame "CLASSES"  {
class LineDiversion {
    type
    id_
    header
    footer
    open_partition(self, text)
    close_partition(self)
    finish(self)
}
class Diagram {
    kw_map
    kw_cont_map
    header
    footer
    in_partition
    partition_format
    association
    inheritance
    open_partition(self, text)
    close_partition(self)
    process_parts(self, part_map)
}
class DiagramStructure {
    header
    footer
}
class DiagramClass {
    type
    header
    footer
    partition_format
}
class DiagramObject {
    type
}
class DiagramComponent {
    type
}
class DiagramDeployment {
    type
}
class DiagramBehavior {
}
class DiagramUseCase {
    type
}
class DiagramActivity {
    type
}
class DiagramStateMachine {
    type
}
class DiagramInteraction {
}
class DiagramMessageSequence {
    type
}
class DiagramTiming {
    type
}
class LineParser {
                 rx
                 groups
    init(self, rx, groups)
    match(self, line)
    split(self, line, mo, diagram)
    assemble(self, part_map, diagram)
}
list <|-- LineDiversion
LineDiversion <|-- Diagram
Diagram <|-- DiagramStructure
DiagramStructure <|-- DiagramClass
DiagramStructure <|-- DiagramObject
DiagramStructure <|-- DiagramComponent
DiagramStructure <|-- DiagramDeployment
Diagram <|-- DiagramBehavior
DiagramBehavior <|-- DiagramUseCase
DiagramBehavior <|-- DiagramActivity
DiagramBehavior <|-- DiagramStateMachine
DiagramBehavior <|-- DiagramInteraction
DiagramInteraction <|-- DiagramMessageSequence
DiagramInteraction <|-- DiagramTiming
}
@enduml

7.6. Command/Module Documentation

line_diversion.py - extract UML diagram from source code

usage: line_diversion.py [OPTIONS] [file ..]
or import line_diversion

7.6.1. Options

-m, –match RX only extract diagrams matching RX
-b, –file-base=BASE Write output to files: BASE + ID + “.puml”. E.g. –file-base=”file-base-” => file-base-a0.puml
–show-bases show base classes for class diagrams (default)
–hide-bases hide base classes for class diagrams
–ignore-bases CLASS
ignore base class for class diagrams
(can be specified multiple times) (default: object, PyJsMo)
-r, --replace REP
register replacement REP. REP is a symbol and a replacement separated by whitespace.
–verbatim do not perform standard replacements
-q, –quiet suppress warnings
-v, –verbose verbose test output
-d, –debug[=NUM] show debug information
-h, –help display this help message
–template list show available templates.
–eide[=COMM] Emacs IDE template list (implies –template list).
–template[=NAME] extract named template to standard output. Default NAME is -.
–extract[=DIR] extract adhoc files to directory DIR (default: .)
–explode[=DIR] explode script with adhoc in directory DIR (default __adhoc__)
–setup[=install] explode script into temporary directory and call python setup.py install
–implode implode script with adhoc
-t, –test run doc tests

7.6.2. Module

These are the UML diagrams and type codes supported by PlantUML ..

Marker
Diagram

#c[0-9]+
class diagram

#o[0-9]+
object diagram

#p[0-9]+
component diagram

#d[0-9]+
deployment diagram

#u[0-9]+
use case diagram

#a[0-9]+
activity diagram

#s[0-9]+
state machine diagram

#m[0-9]+
sequence diagram

#t[0-9]+
timing diagram

Type Type
c u
o a
p s
d m
    t

This is the inheritance hierarchy of UML diagrams supported by PlantUML (clickable in HTML):

' -*- plantuml -*-
' Copyright (C) 2018, Wolfgang Scherer, <Wolfgang.Scherer at gmx.de>
'
' This file is part of Documentation Standard.
'
' This program is free software; you can redistribute it and/or modify
' it under the terms of the GNU General Public License as published by
' the Free Software Foundation; either version 3 of the License, or
' (at your option) any later version.
'
' This program is distributed in the hope that it will be useful, but
' WITHOUT ANY WARRANTY; without even the implied warranty of
' MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the GNU
' General Public License for more details.
'
' You should have received a copy of the GNU General Public License
' along with this program. If not, see <http://www.gnu.org/licenses/>.

@startuml
/' |:here:| '/

skinparam padding 1

left to right direction

hide members

class "UML 2.5 Diagram" as U2 [[https://www.uml-diagrams.org/uml-25-diagrams.html]] {
}
class "Structure Diagram" as RD [[https://www.uml-diagrams.org/uml-25-diagrams.html#structure-diagram]] {
}
class "Class Diagram" as CD <<(c, lightblue)>> [[https://www.uml-diagrams.org/class-diagrams-overview.html]] {
}
class "Object Diagram" as OD <<(o, lightblue)>> [[https://www.uml-diagrams.org/class-diagrams-overview.html#object-diagram]] {
}
class "Component Diagram" as PD <<(p, lightblue)>> [[https://www.uml-diagrams.org/component-diagrams.html]] {
}
class "Deployment Diagram" as DD <<(d, lightblue)>> [[https://www.uml-diagrams.org/deployment-diagrams-overview.html]] {
}
class "Behavior Diagram" as BD [[https://www.uml-diagrams.org/uml-25-diagrams.html#behavior-diagram]] {
}
class "Use Case Diagram" as UC <<(u, goldenrod)>> [[https://www.uml-diagrams.org/use-case-diagrams.html]] {
}
class "Activity Diagram" as AD <<(a, goldenrod)>> [[https://www.uml-diagrams.org/activity-diagrams.html]] {
}
class "State Machine Diagram" as SM <<(s, goldenrod)>> [[https://www.uml-diagrams.org/state-machine-diagrams.html]] {
}
class "Interaction diagram" as ID [[https://www.uml-diagrams.org/uml-25-diagrams.html#interaction-diagram]] {
}
class "Message Sequence Diagram" as MS <<(m, goldenrod)>> [[https://www.uml-diagrams.org/sequence-diagrams.html]] {
}
class "Timing Diagram" as TD <<(t, goldenrod)>> [[https://www.uml-diagrams.org/timing-diagrams.html]] {
}

hide U2 circle
hide RD circle
hide BD circle
hide ID circle

U2 <|-- RD
RD <|-- CD
RD <|-- OD
RD <|-- PD
RD <|-- DD
U2 <|-- BD
BD <|-- UC
BD <|-- AD
BD <|-- SM
BD <|-- ID
ID <|-- MS
ID <|-- TD

' (progn (forward-line 1) (snip-insert-mode "puml.t.ide" t) (insert "\n"))
' :ide-menu: Emacs IDE Menu - Buffer @BUFFER@
' . M-x `eIDE-menu' ()(eIDE-menu "z")

' :ide: OCCUR-OUTLINE: Sections: `||: sec :||'
' . (x-symbol-tag-occur-outline "sec" '("||:" ":||") '("|:" ":|"))

' :ide: MENU-OUTLINE:  Sections `||: sec :||'
' . (x-eIDE-menu-outline "sec" '("||:" ":||") '("|:" ":|"))

' :ide: OCCUR-OUTLINE: Default `|||: sec :|||'
' . (x-symbol-tag-occur-outline)

' :ide: MENU-OUTLINE:  Default `|||: sec :|||'
' . (x-eIDE-menu-outline)

' :ide: +-#+
' . Buffer Outline Sections ()

' :ide: PLANTUML: HELP
' . (let ((args (concat (file-name-sans-extension (buffer-file-name)) ""))) (compile (concat "plantuml -h ")))

' :ide: PLANTUML: this file's EPS
' . (let ((args (concat (file-name-sans-extension (buffer-file-name)) ".eps"))) (compile (concat "plantuml -teps " (buffer-file-name))))

' :ide: PLANTUML: this file's PDF
' . (let ((args (concat (file-name-sans-extension (buffer-file-name)) ".pdf"))) (compile (concat "plantuml -tpdf " (buffer-file-name))))

' :ide: PLANTUML: this file's PNG
' . (let ((args (concat (file-name-sans-extension (buffer-file-name)) ".png"))) (compile (concat "plantuml -tpng " (buffer-file-name))))

' :ide: PLANTUML: this file's SVG
' . (let ((args (concat (file-name-sans-extension (buffer-file-name)) ".svg"))) (compile (concat "plantuml -tsvg " (buffer-file-name))))

' :ide: PLANTUML: this file's PNG + display
' . (let ((args (concat (file-name-sans-extension (buffer-file-name)) ".png"))) (compile (concat "plantuml -tpng " (buffer-file-name) " && display " args)))

' :ide: PLANTUML: this file's PNG + VIEW
' . (let ((args (concat (file-name-sans-extension (buffer-file-name)) ".png"))) (shell-command (concat "plantuml -tpng " (buffer-file-name) " ")) (view-file-other-window args))

' :ide: PLANTUML: this file's SVG + VIEW
' . (let ((args (concat (file-name-sans-extension (buffer-file-name)) ".svg"))) (shell-command (concat "plantuml -tsvg " (buffer-file-name) " ")) (view-file-other-window args))

' Local Variables:
' mode: plantuml
' mode: snip-minor
' snip-show-inactive: t
' snip-mode: plantuml
' truncate-lines: t
' comment-start: "'"
' comment-end: ""
' End:
@enduml

7.6.3. Automatic Exports

>>> for ex in __all__: printf(sformat('from {0} import {1}', __name__, ex))
from line_diversion import check_line_parse
from line_diversion import LineParser
from line_diversion import DiagramTiming
from line_diversion import DiagramMessageSequence
from line_diversion import DiagramInteraction
from line_diversion import DiagramStateMachine
from line_diversion import DiagramActivity
from line_diversion import DiagramUseCase
from line_diversion import DiagramBehavior
from line_diversion import DiagramDeployment
from line_diversion import DiagramComponent
from line_diversion import DiagramObject
from line_diversion import DiagramClass
from line_diversion import DiagramStructure
from line_diversion import Diagram
from line_diversion import LineDiversion

7.6.4. Explicit Exports

>>> if '__all_internal__' in globals():
...   for ex in __all_internal__:
...     printf(sformat('from {0} import {1}', __name__, ex))

7.6.5. Details

See check_line_parse() for comprehensive list of line matchers.

7.6.5.1. Prefix Match

>>> printf(PREFIX_LP)
{
    "rx": [
        "^(\\s*)(?://+|/\\*+|;+|@:u?[bl]?comm_?@|--|#+|@[bl]?comm_?@|[.][.])([copduasmt][0-9]+)(?:\\s|$)",
        "0"
    ],
    "groups": {
        "whitespace": 1,
        "id": 2,
        "text": null,
        "keyword": null,
        "condition": null
    }
}
>>> mo, _id = PREFIX_LP.match('#''a3 if (test) then (yes)')
>>> printf(mo.groups())
('', 'a3')

7.6.5.2. Condition Match

>>> printf(COND_LP)
{
    "rx": [
        "^(\\s*)(break|class|def|done|elif|else|elseif|elsif|fi|for|if|while|\\})(?::?|\\s)\\s*(.*)\\s*(?://+|/\\*+|;+|@:u?[bl]?comm_?@|--|#+|@[bl]?comm_?@|[.][.])([copduasmt][0-9]+)(?:\\s(.*)|\\s*)$",
        "0"
    ],
    "groups": {
        "whitespace": 1,
        "id": 4,
        "text": 5,
        "keyword": 2,
        "condition": 3
    }
}
>>> mo, _id = COND_LP.match('        if remove_count:  #''a1 then (yeah)')
>>> printf(mo.groups())
('        ', 'if', 'remove_count:  ', 'a1', 'then (yeah)')
>>> mo, _id = COND_LP.match('} #''a1')
>>> printf(mo.groups())
('', '}', '', 'a1', None)

7.6.5.3. Action Match

>>> printf(ACT_LP)
{
    "rx": [
        "^(\\s*)(?:(?://+|/\\*+|;+|@:u?[bl]?comm_?@|--|#+|@[bl]?comm_?@|[.][.]) )?(.*)\\s*(?://+|/\\*+|;+|@:u?[bl]?comm_?@|--|#+|@[bl]?comm_?@|[.][.])([copduasmt][0-9]+) (:[];|<>/}]?|[];|<>/}.-])\\s*(?:(#[0-9A-Za-z]+|backwards)(?:\\s+|$))?(?:\\s(.*)|\\s*)$",
        "0"
    ],
    "groups": {
        "whitespace": 1,
        "id": 3,
        "text": 6,
        "keyword": 4,
        "condition": 2,
        "cond_pfx": 5
    }
}
>>> mo, _id = ACT_LP.match('# * call `process_parts #''a3 :| #red')
>>> printf(mo.groups())
('', '* call `process_parts ', 'a3', ':|', '#red', None)
>>> mo, _id = ACT_LP.match('        something = more #''a1 :')
>>> printf(mo.groups())
('        ', 'something = more ', 'a1', ':', None, None)
>>> mo, _id = ACT_LP.match('        something = more #''a1 ::')
>>> if mo: printf(mo.groups())
>>> mo, _id = ACT_LP.match('        something = more #''a1 :-')
>>> if mo: printf(mo.groups())
>>> mo, _id = ACT_LP.match('        something = more #''a1 :;')
>>> printf(mo.groups())
('        ', 'something = more ', 'a1', ':;', None, None)
>>> mo, _id = ACT_LP.match('rm -f "${top_dir}/.hgignore.new" #''a1 :')
>>> printf(mo.groups())
('', 'rm -f "${top_dir}/.hgignore.new" ', 'a1', ':', None, None)
>>> printf(ACT_RX.pattern)
^(\s*)(?:(?://+|/\*+|;+|@:u?[bl]?comm_?@|--|#+|@[bl]?comm_?@|[.][.]) )?(.*)\s*(?://+|/\*+|;+|@:u?[bl]?comm_?@|--|#+|@[bl]?comm_?@|[.][.])([copduasmt][0-9]+) (:[];|<>/}]?|[];|<>/}.-])\s*(?:(#[0-9A-Za-z]+|backwards)(?:\s+|$))?(?:\s(.*)|\s*)$
>>> printf(ACT_LP.groups)
OrderedDict([('whitespace', 1), ('id', 3), ('text', 6), ('keyword', 4), ('condition', 2), ('cond_pfx', 5)])
line_diversion.check_line_parse(*exprs)[source]
Returns:

prints

>>> check_line_parse('# s/^+//''p') #doctest: +ELLIPSIS
# --------------------------------------------------
#  ||:exp:||  # s/^+//p
# --------------------------------------------------
#    :DBG:    ACT_LP           : ]--[ ]()[
#    :DBG:    ATTRIB_LP        : ]--[ ]()[
#    :DBG:    COND_LP          : ]--[ ]()[
#    :DBG:    PREFIX_LP        : ]--[ ]()[
#    :DBG:    PRINTE_SFORMAT_LP: ]--[ ]()[
#    :DBG:    PYJSMO_ATTRIB_LP : ]--[ ]()[
#    :DBG:    SUFFIX_LP        : ]--[ ]()[
>>> check_line_parse('# start #''a99') #doctest: +ELLIPSIS
# --------------------------------------------------
#  ||:exp:||  # start #a...99
# --------------------------------------------------
#    :DBG:    ACT_LP           : ]--[ ]()[
#    :DBG:    ATTRIB_LP        : ]--[ ]()[
#    :DBG:    COND_LP          : ]--[ ]()[
#    :DBG:    PREFIX_LP        : ]--[ ]()[
#    :DBG:    PRINTE_SFORMAT_LP: ]--[ ]()[
#    :DBG:    PYJSMO_ATTRIB_LP : ]--[ ]()[
#    :DBG:    SUFFIX_LP        : ]a99[ ]('', 'start ', 'a99')[
>>> check_line_parse('.. start ..''a99') #doctest: +ELLIPSIS
# --------------------------------------------------
#  ||:exp:||  .. start ..a...99
# --------------------------------------------------
#    :DBG:    ACT_LP           : ]--[ ]()[
#    :DBG:    ATTRIB_LP        : ]--[ ]()[
#    :DBG:    COND_LP          : ]--[ ]()[
#    :DBG:    PREFIX_LP        : ]--[ ]()[
#    :DBG:    PRINTE_SFORMAT_LP: ]--[ ]()[
#    :DBG:    PYJSMO_ATTRIB_LP : ]--[ ]()[
#    :DBG:    SUFFIX_LP        : ]a99[ ]('', 'start ', 'a99')[
>>> check_line_parse('start #''a99') #doctest: +ELLIPSIS
# --------------------------------------------------
#  ||:exp:||  start #a...99
# --------------------------------------------------
#    :DBG:    ACT_LP           : ]--[ ]()[
#    :DBG:    ATTRIB_LP        : ]--[ ]()[
#    :DBG:    COND_LP          : ]--[ ]()[
#    :DBG:    PREFIX_LP        : ]--[ ]()[
#    :DBG:    PRINTE_SFORMAT_LP: ]--[ ]()[
#    :DBG:    PYJSMO_ATTRIB_LP : ]--[ ]()[
#    :DBG:    SUFFIX_LP        : ]--[ ]()[
class line_diversion.LineParser(*args, **kwargs)[source]
>>> lp = LineParser()
>>> printf(lp)
{
    "rx": [
        null,
        "0"
    ],
    "groups": {
        "whitespace": null,
        "id": null,
        "text": null,
        "keyword": null,
        "condition": null
    }
}
>>> printf(lp._pyjsmo_x_rx)
None
>>> lp.rx = re.compile('some', re.I | re.M | re.U)
>>> printf(lp)
{
    "rx": [
        "some",
        "re.IGNORECASE|re.MULTILINE|re.UNICODE"
    ],
    "groups": {
        "whitespace": null,
        "id": null,
        "text": null,
        "keyword": null,
        "condition": null
    }
}
>>> printf(trans_rx_repr(lp._pyjsmo_x_rx)) #doctest: +ELLIPSIS
re.compile('some', re.IGNORECASE|re.MULTILINE|re.UNICODE)
>>> lp.rx = ("some where", "re.IGNORECASE|re.UNICODE")
>>> printf(lp)
{
    "rx": [
        "some where",
        "re.IGNORECASE|re.UNICODE"
    ],
    "groups": {
        "whitespace": null,
        "id": null,
        "text": null,
        "keyword": null,
        "condition": null
    }
}
>>> printf(trans_rx_repr(lp._pyjsmo_x_rx)) #doctest: +ELLIPSIS
re.compile('some where', re.IGNORECASE|re.UNICODE)
assemble(part_map, diagram)[source]
Returns:assembled line.
init(rx, groups)[source]
Returns:self for chaining.
match(line)[source]

Match against line.

Returns:match object or None.
rx

Programmatic property.

split(line, mo, diagram)[source]
Returns:part map
  • indent
  • text
  • kw
  • cond_pfx
  • condr
  • rest
  • mapped_kw
  • kw_sep
  • cond
  • kw_cont_sep
  • mapped_kw_cont
split_(line, mo, diagram)[source]
Returns:part map
class line_diversion.DiagramTiming(*args, **kwargs)[source]

LineDiversion for Timing Diagram.

class line_diversion.DiagramMessageSequence(*args, **kwargs)[source]

LineDiversion for Message Sequence Diagram.

class line_diversion.DiagramInteraction(*args, **kwargs)[source]

LineDiversion for Interaction Diagram.

class line_diversion.DiagramStateMachine(*args, **kwargs)[source]

LineDiversion for State Machine Diagram.

class line_diversion.DiagramActivity(*args, **kwargs)[source]

LineDiversion for Activity Diagram.

class line_diversion.DiagramUseCase(*args, **kwargs)[source]

LineDiversion for Use Case Diagram.

class line_diversion.DiagramBehavior(*args, **kwargs)[source]

LineDiversion for Behavior Diagram.

class line_diversion.DiagramDeployment(*args, **kwargs)[source]

LineDiversion for Deployment Diagram.

class line_diversion.DiagramComponent(*args, **kwargs)[source]

LineDiversion for Component Diagram.

class line_diversion.DiagramObject(*args, **kwargs)[source]

LineDiversion for Object Diagram.

class line_diversion.DiagramClass(*args, **kwargs)[source]

LineDiversion for Class Diagram.

class line_diversion.DiagramStructure(*args, **kwargs)[source]

LineDiversion for Structure Diagram.

class line_diversion.Diagram(*args, **kwargs)[source]
close_partition()[source]
Returns:self for chaining.
open_partition(text)[source]
Returns:self for chaining.
process_parts(part_map)[source]
Returns:new/altered part_map.
>>> check_def = 'SomeClass ( with,multiple, inheritance )'
>>> mo = re.match(CLASS_DEF_RX, check_def)
>>> if mo: printf(sformat("{0}//{1}//", mo.groups(), check_def[mo.end(0):]))
('SomeClass', 'with,multiple, inheritance ')////
>>> class Check():
...     pass
>>> check_def = 'SomeClass ()'
>>> mo = re.match(CLASS_DEF_RX, check_def)
>>> if mo: printf(sformat("{0}//{1}//", mo.groups(), check_def[mo.end(0):]))
('SomeClass', '')////
>>> check_def = 'SomeClass'
>>> mo = re.match(CLASS_DEF_RX, check_def)
>>> if mo: printf(sformat("{0}//{1}//", mo.groups(), check_def[mo.end(0):]))
('SomeClass', None)////
class line_diversion.LineDiversion(*args, **kwargs)[source]
close_partition()[source]
Returns:self for chaining.
finish()[source]
Returns:self for chaining.
open_partition(text)[source]
Returns:self for chaining.


[1]Normally, PlantUML code is placed before the source code of a script, class, function etc. or in a separate text file. In this case it is necessary to have two windows, one for documenting the source code as PlantUML and the other for coding. This can lead to the phenomenon of big differences between the source code and its documentation, because of laziness. To prevent this from happening, it is useful to use UML annotations.
